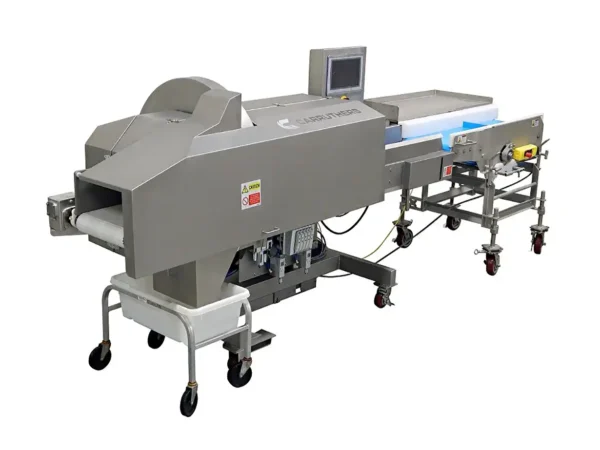

AE Logger Meat Portioner
The Marlen AE Logger is a programmable one-dimensional meat portioner for deli meats, deli loafs or snack sticks. It is a one-dimensional portioner that provides processors with improved processing speed and lower labor costs. Patented cutting action allows for clean, precise cuts on a wide range of products such as deli meats, loaves, processed logs, snack sticks, and more. Specify lengths or numbers of lengths for portion control accuracy of 1/16-in, and automatically remove ends and clips.
- Product Family: Slicers, Dicers
Features
- AE Logger is a one-dimensional portioner that provides processors with improved processing speed and lower labor costs
- Patented cutting action allows for clean, precise cuts on a wide range of products such as deli meats, loaves, processed logs, snack sticks, and more
- Portion control design assures maximum yields by achieving cut length accuracies to within 1/16-in
- The AE Logger is designed and constructed to make operation and maintenance easier to maximize uptime
- Fully programmable cut sizes of any length
- Ends reject capability
- Product length sensing
- Auto-bar code recognition for fast-cut pattern recall
- Specify lengths or numbers of lengths for portion control accuracy
- Fully sealed belts
- Stainless steel drive pulleys
- Direct-drive Servo motors
- Made in the USA
Specs
Product Type: Slices and Portions tough products like Jerky snack sticks or fragile products like bologna logs and braunschweiger. Finished product is clean-cut with no loss of structure, and no moisture loss.
Size of Product: Belt widths of 12” available. Product sizes up to 7” tall can be processed
Temperature: Slice chilled product down to 25°F or fresh product at refrigerated temperatures
Flexibility: Slice a full range of slicing from 1/16” and up, and chub/portion sizes up to any length
Continuous Flow: Processes a continuous flow of product; does not require an operator as batch process machines do
Throughput: Capacity of an AE-Logger on 6ft Deli Logs chubbing at 6” long will be over 3,000 lbs/hour. Lesser throughput will be experienced on smaller cut lengths; higher throughput may be achieved on larger cuts. Maximum belt speed of 40 ft/min.
Utilities: 3-Phase AC power, 240 / 380 / 415 / 480 voltages available. Compressed air, 100 psi, 5 scfm, no water required.
