Afoheat™ Flame Grill – 60-inch

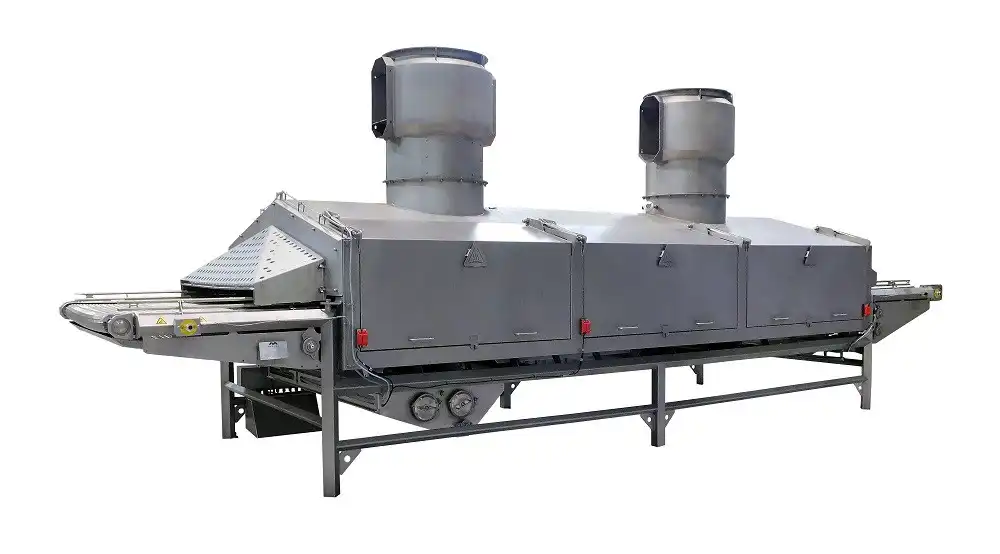

Our 60-in Afoheat™ Flame Grill is a continuous grill equipped with gas-powered direct flame technology and an interchangeable grill marker. The 60-in Flame Grill is designed for a variety of applications including roasting, searing and grill marking of both bulk and convenience foods. The 60-in Flame Grill comes with 24 burners and a stand-alone HMI/electrical box. It includes dual exhaust and 3 access doors. At the core of the design concept are standardized models with a compact footprint that are perfect for processors looking for flexible grilling technology. Our Flame Grill can be used as a standalone solution or integrated into any continuous thermal processing line. The control system turns burners on/off independently. Manual adjustments can be made to the burner angle, height, and gas air mixture to optimize product color and enhance flavor profile.
- Product Family: Afoheat™ Flame Grills
Featured Video
Afoheat™ Surface Treatment Solutions
Features
- Flame sear, roast, brown, or grill mark
- Interchangeable grill marker
- Independent burner control (on/off)
- Top and bottom flame
- Pilot light for burner ignition
- Create, edit, and store recipes
- Self-cleaning burners (pyrolysis)
- Removable drip pans for cleaning
- Inline belt wash
- Exhaust fan and Y duct extraction assembly
- Overheat protection system
- Freestanding control panel enclosure
- Door safety switches
- Preassembled and tested, installation ready
- EWON for remote data logging
Optional Features:
- Steam impingement
- Rod, wire, or woven mesh belt design
- Product transfer roller or scraper
- Infeed and discharge extensions
- UL control panel and enclosure
Specs
Footprint: 20.17′ (6.15 m) L x 12.08′ (3.68 m) W x 9.62′ (2.93 m) H
Belt Width: 60″ (1.5 m)
Conveyor Height: 45.3″ (1.15 m)
Conveyor Speed: 15-120 seconds dwell time average; Up to 80′ (24 m) per minute
Product Clearance: Up to 5″ (127 mm)
Gas Supply*: Up to 10.2 MBTU/Hr @ 2 PSI (7 PSI max.); 2″ (50 mm) NPT or 2,500 kW/hr @ 344 mbar (485 mbar max.) 50 mm
- *Most recipes utilize only 30-80% of the burner capacity
Electrical Supply: USA: 480V AC, 3 Ph, 75 Amp max., 60 Hz (~34 Amp usage) / EUR: 380V AC, 3 Ph, 95 Amp max., 50 Hz (~43 Amp usage)
Extraction: 2 x 28″ (2 x 711 mm) outlet; Up to 14,000 CFM (396 m³/min.) total
Drains: Belt wash – 3″ (75 mm) sanitary – overflow / Drip pan – 1.5″ (40 mm) – overflow
Water Supply: 1/2″ (12 mm) NPT inlet; Up to 60 GPH (227 liter/hr)
Steam Supply: 3/4″ NPT (20 mm) inlet 15 psi (1,034 mbar) 150 lbs/hr (70 kg/hr) for the Overheat Protection System
Ethernet (EWON): 1 x Ethernet cable CAT6 for remote monitoring
